WS2815 DC12V WS2812B WS2813 LED Strip Light RGB Individually Addressable LED Lights Dual Signal 1m 5m 30 60 144 LEDs IP30 65 67
US $3.64
Latest Update :
Brand Seller :
Batch id : EdUhAAsAGhd
Posted : Thu, 22 Jul 2021 10:34:44 +0000
☑ More Details
*Please kindly take a note that prices can change at any time. We may receive commissions when you click our links and make purchases.

Extraordinary quality WS2815 DC12V WS2812B WS2813 LED Strip Light RGB Individually Addressable LED Lights Dual Signal 1m 5m 30 60 144 LEDs IP30 65 67 with reduced price directly from producer. All round world wide free delivery available for 100$ reservation. Available at very limited quantiy, you have to reserve now before sold out.

Term:

WS2815 DC12V WS2812B WS2813 LED Strip Light RGB Individually Addressable LED Lights Dual Signal 1m 5m 30 60 144 LEDs IP30 65 67 Details & Specification :

Item Specifications
Brand Name BTF-LIGHTING
Origin CN(Origin)
Certification CCC
Certification ROHS
Certification ce
Occasion Garden
Strip type SMD
Average Life (hrs) 50000
Item Type Strip
Waterproof Yes
Is Smart Device YES
LED Chip Brand Epistar
Color Temp(K) -
Voltage 12V
Power Source DC
LED Chip Model SMD5050
Model Number BTF-WS2815-RGB-12V
Specifications (light beads / m) 60
LEDs Number/M 30leds/60leds/144leds







12V WS2812B LED Strip:

WS2815 LED strip is upgraded version of 5V WS2812B LED strip. For 5M LED strip, even if all the LEDs are turned on full white, 12V version has no voltage drop. You don't need to inject power as frequently as 5V version.

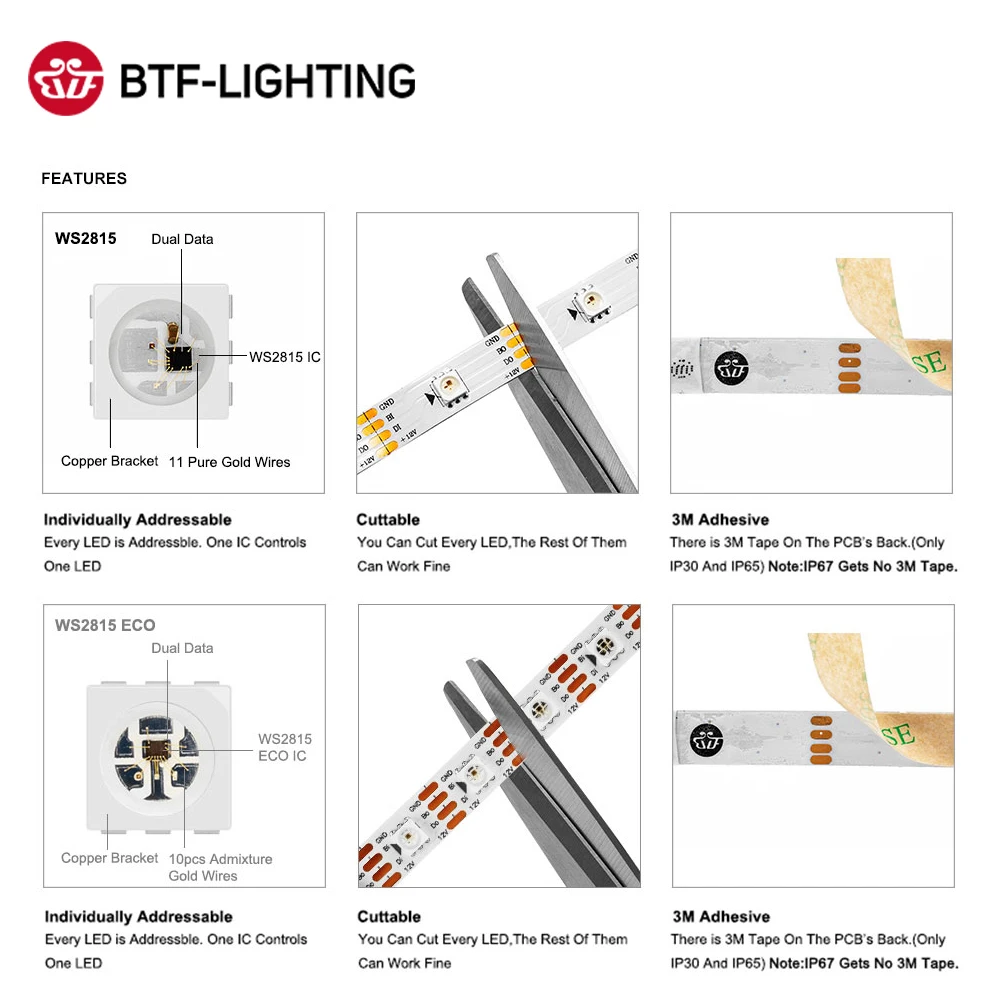

Individually addressable:
Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.


Dual-signal wires:
WS2815LED strip is Similar like the version of 5V WS2813 LED strip, Designed with one data wire and one backup data wire. Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.


Specifications:
IC type :WS2815 IC.
Gray level: 256.
View angle: 120°.
Input voltage: DC12V.
Color: full color 24-bit.
FPCB board color: White/Black.
Power: 0.3W/LED  30/60/144 LEDs/m.
Model: WS2815 strip 5050rgb chips.
Storage Temperature:-30-+95 °C.
Operating Temperature:-20 ~ +85°C.
Led Qty: 30/60/144pcs RGB SMD 5050 per meter.

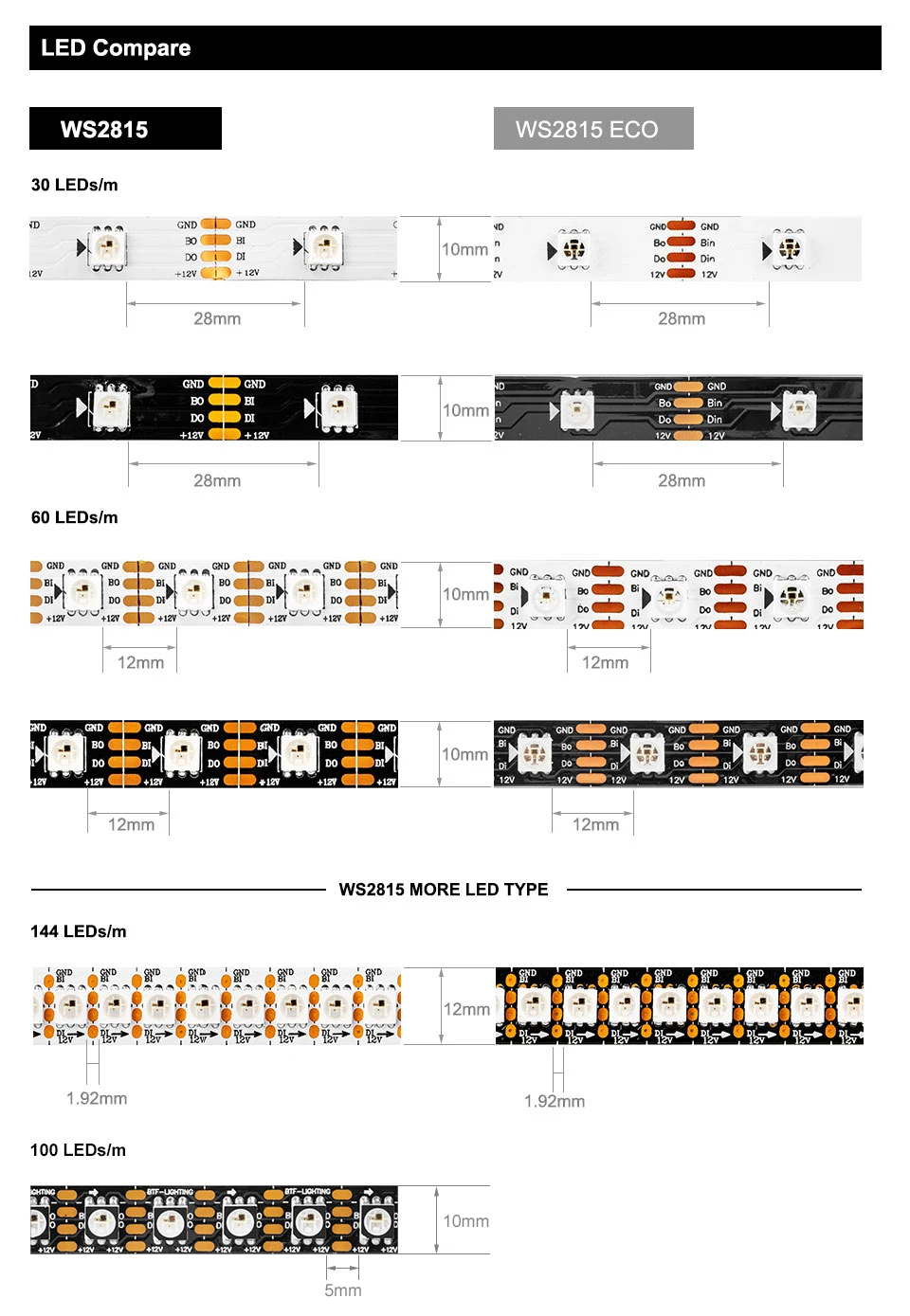

The distance between two LEDs:30Leds/m -- 28mm, 60Leds/m -- 12mm, 144Leds/m -- 1.92mm.
Wave length(nm):Red,650nm ; Green,520nm ; Blue,460nm.
Waterproof level: IP30: Non- waterproof, IP65: Waterproof in Silicon Coating, IP67: Waterproof in SiliconTube.


Package includes:
1 x 1M/5M RGB 30/60/144leds/m led strip.
1 x 4pin connector.


Note:
Power adapter and controller are not included!
It is forbidden to light up for a long time when the strip is in the spool.



The different between the WS2815 and WS2815 ECO.

1,LED Chip Material:
11 pcs Pure Gold Line, Copper Bracket (WS2815).
10 pcs Admixture Gold Line, Copper Bracket (WS2815ECO).
2, LED IV Value Brightness:
Red: 300-600mcd, Green: 1500-2500mcd, Blue: 150-400mcd (WS2815).
Red: 200-350mcd, Green: 1100-1400mcd, Blue: 150-300mcd (WS2815ECO).
3, Warranty Period of Led Strip:
36 Months (WS2815), 18 Months (WS2815ECO).
4, LED Channel Order:
GRB (WS2815), RGB (WS2815ECO).
